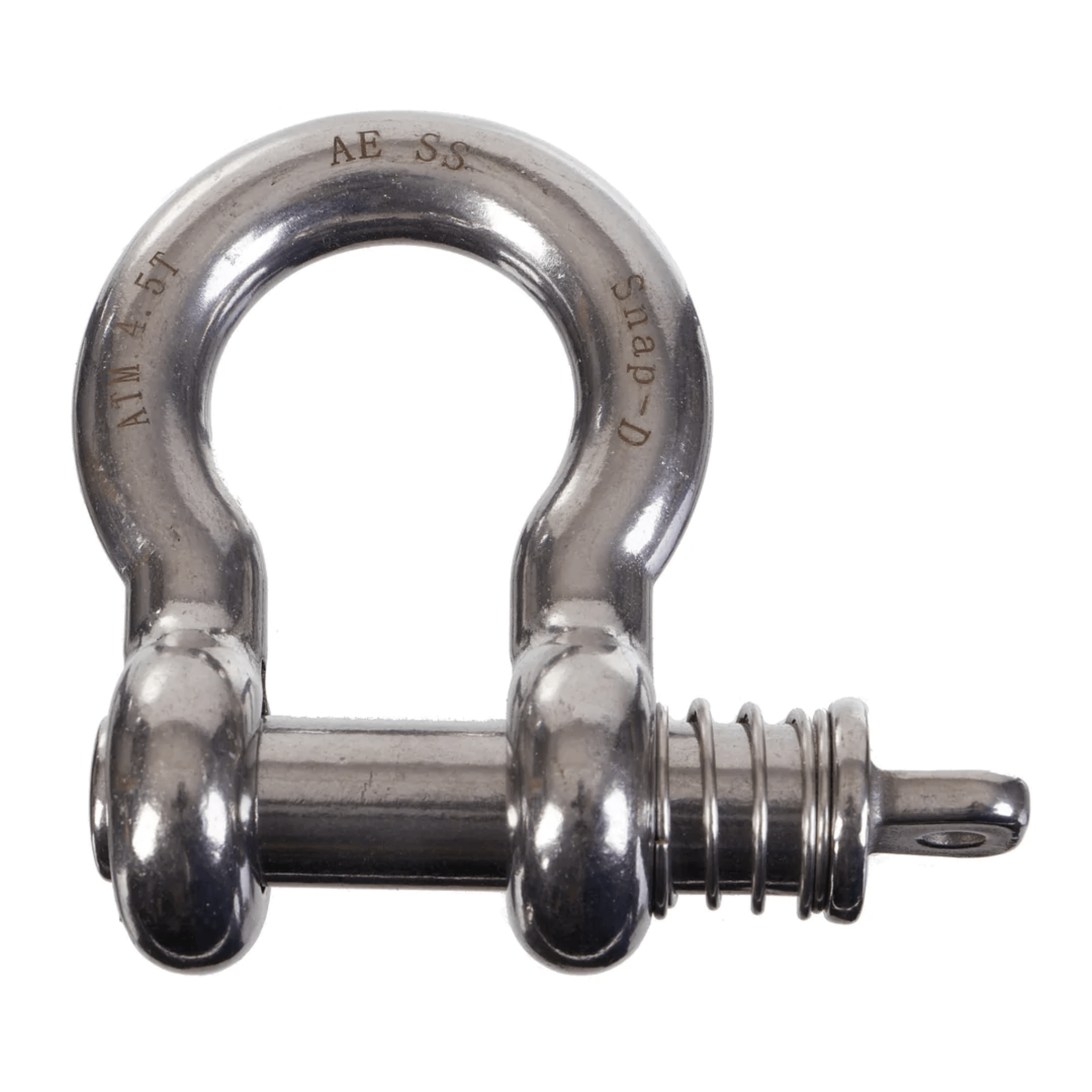

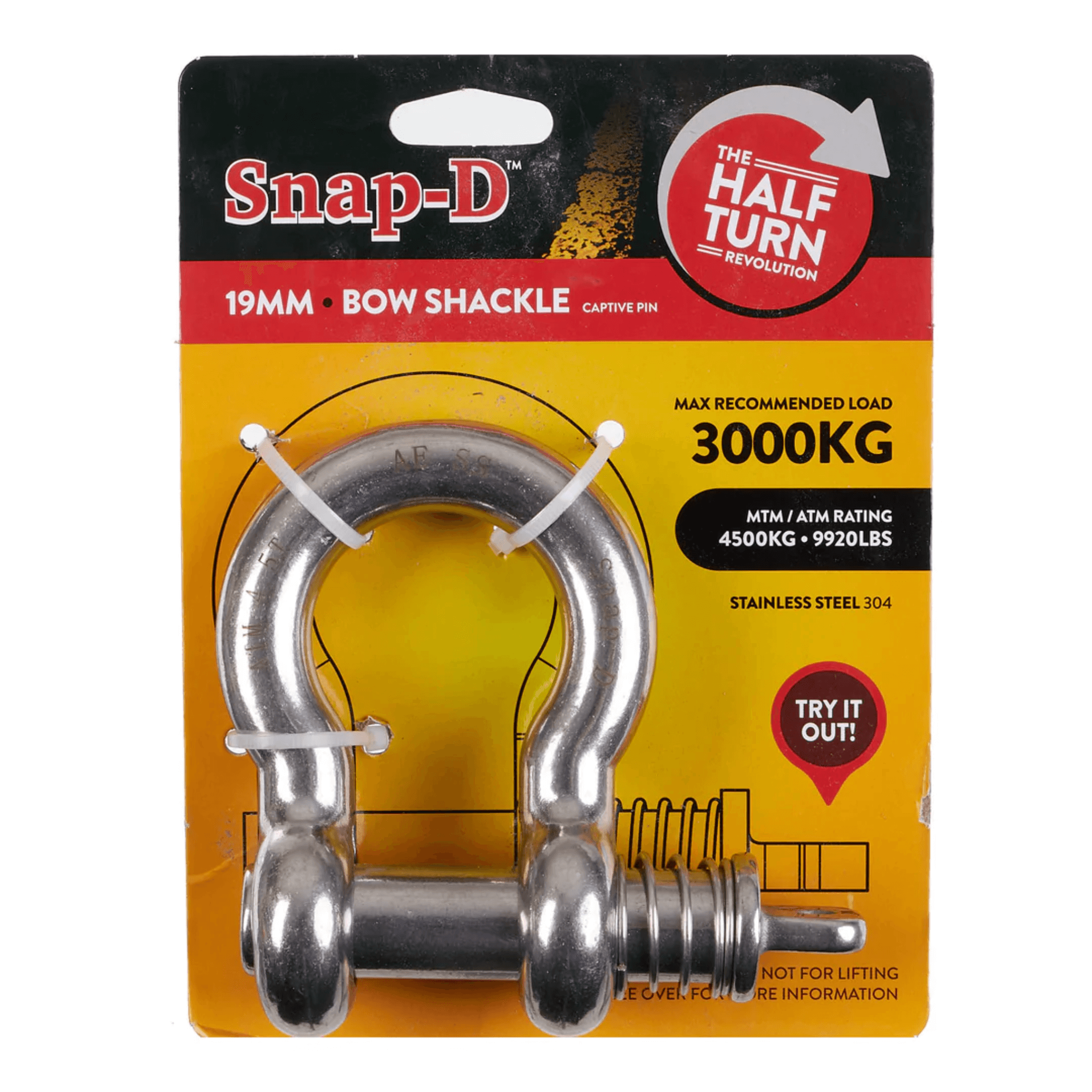

Snap-D 19mm Bow Shackle (ATM 4500KG)
$35.95
Snap-D 19mm Bow Shackle (ATM 4500kg)
The Snap-D 19mm Bow Shackle is the largest Bow Shackle in the Snap-D range, built for heavy-duty towing, recovery and demanding trailer applications.

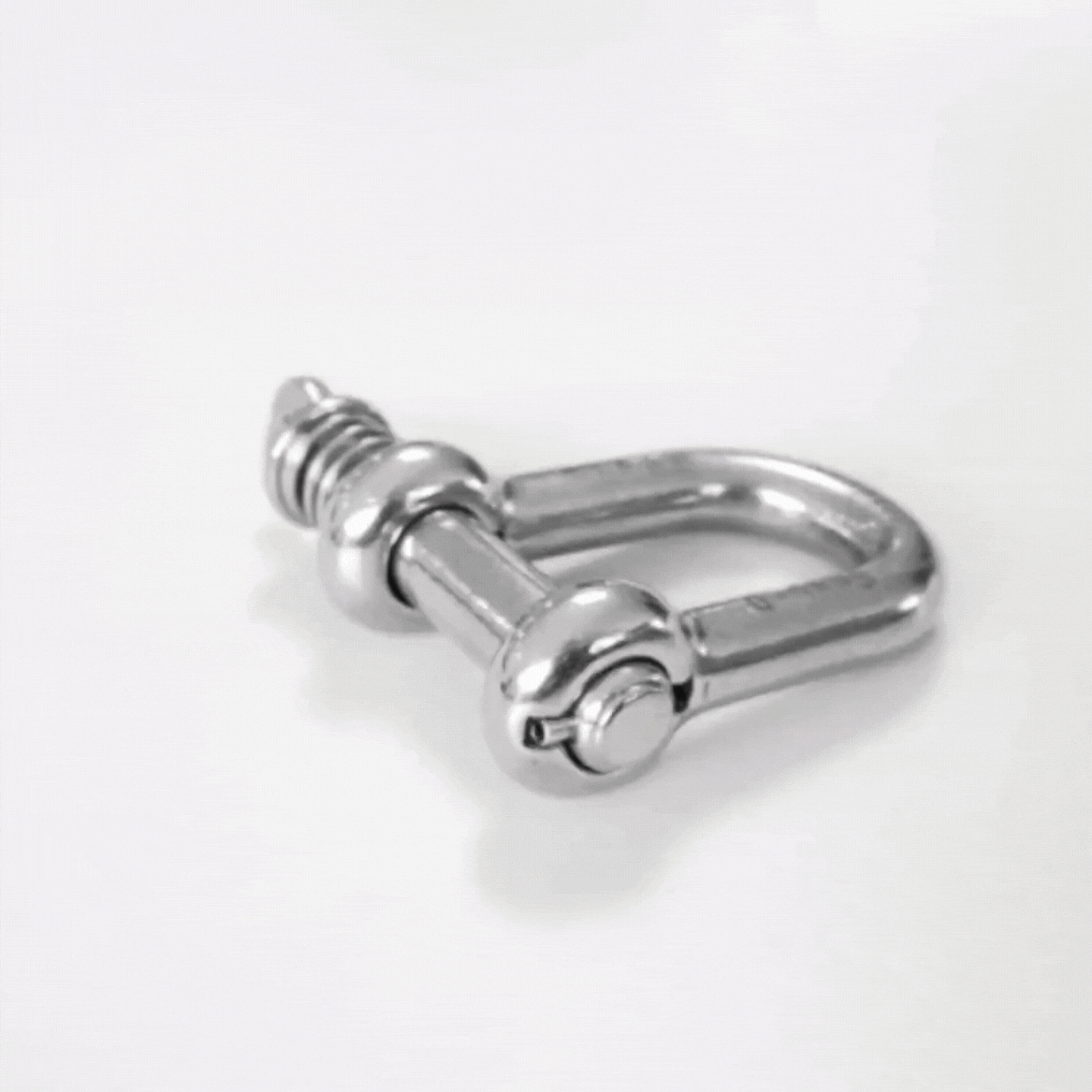

Featuring Snap-D's patented spring-loaded half-turn release system and premium 304 stainless steel construction, this shackle delivers exceptional strength while remaining quick and easy to use.
No threads. No seized pins. No dropped components.
Simply push, half-turn and release.
Specifications
-
Premium 304 Stainless Steel
-
Maximum Towing Capacity: 4500kg ATM
-
Main Pin Diameter: 19mm
-
Internal Leg Width: 25mm
-
Captive Pin Design
-
Approximate Weight: 600g
Ideal For
-
Large tandem and tri-axle trailers
-
Heavy-duty boat trailers
-
Car trailers
-
Recovery and winching applications
-
Agricultural and industrial equipment
-
Off-road and 4WD recovery gear
Why Choose the 19mm Bow Shackle?
When maximum strength is required, the 19mm Bow Shackle is ready for the task.
Its generous bow design provides additional room for larger chain links, straps and recovery gear, making it ideal for heavy-duty towing and recovery situations. Whether you're towing a large trailer, launching a substantial boat or recovering a stuck vehicle, the 19mm Bow Shackle delivers the strength and reliability you need.
Unlike traditional threaded shackles, the Snap-D captive pin system won't seize, bind or require excessive force to operate.

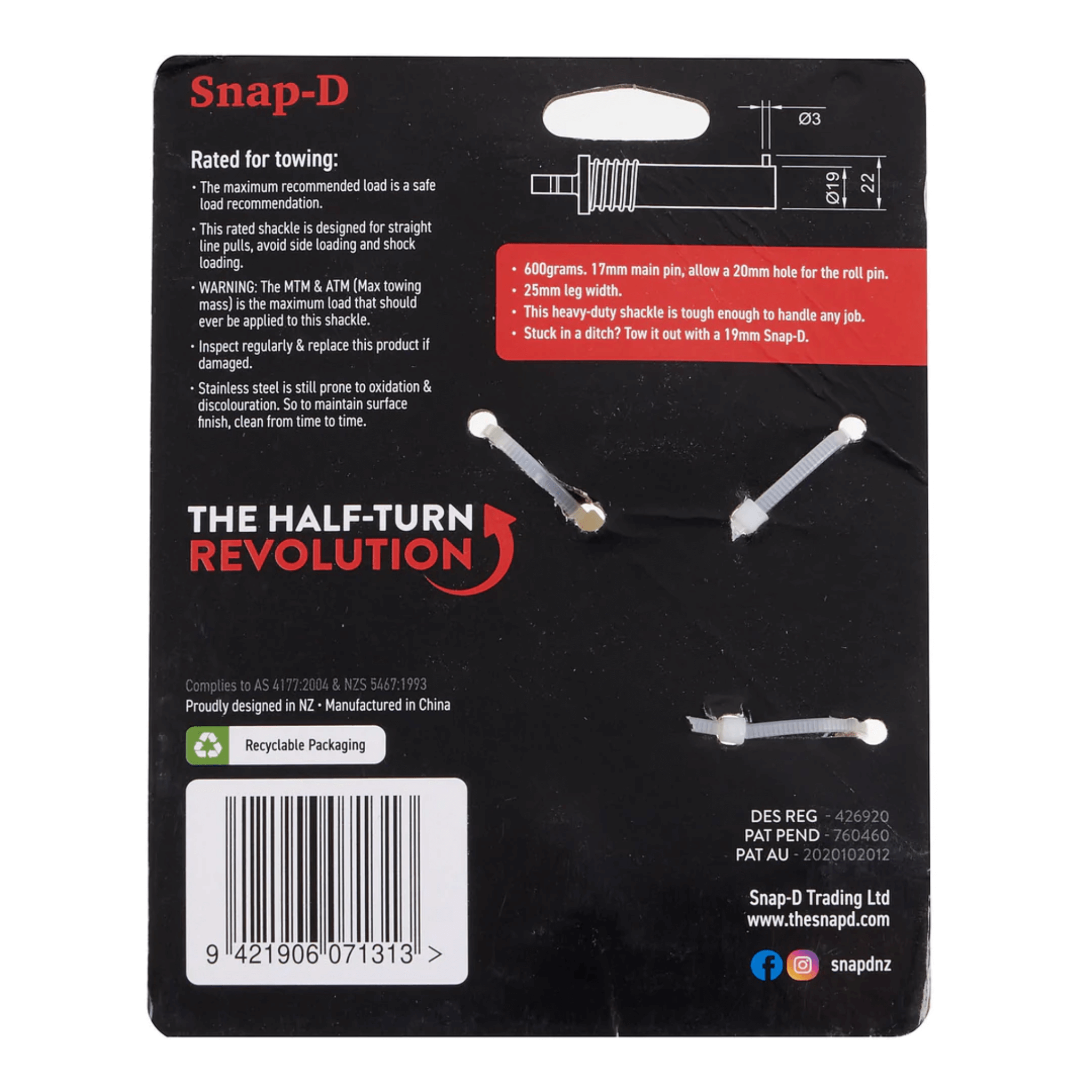

Fitment Information
-
Allow approximately 21mm clearance for the roll pin to pass through the tow bar mounting hole.
-
Retaining clips are not compatible with 17mm and 19mm shackles due to the larger chain sizes typically used with these applications.
Bulk Orders
Need 50+ shackles?
Please contact us directly for commercial, trade and fleet pricing.
Need Help Choosing?

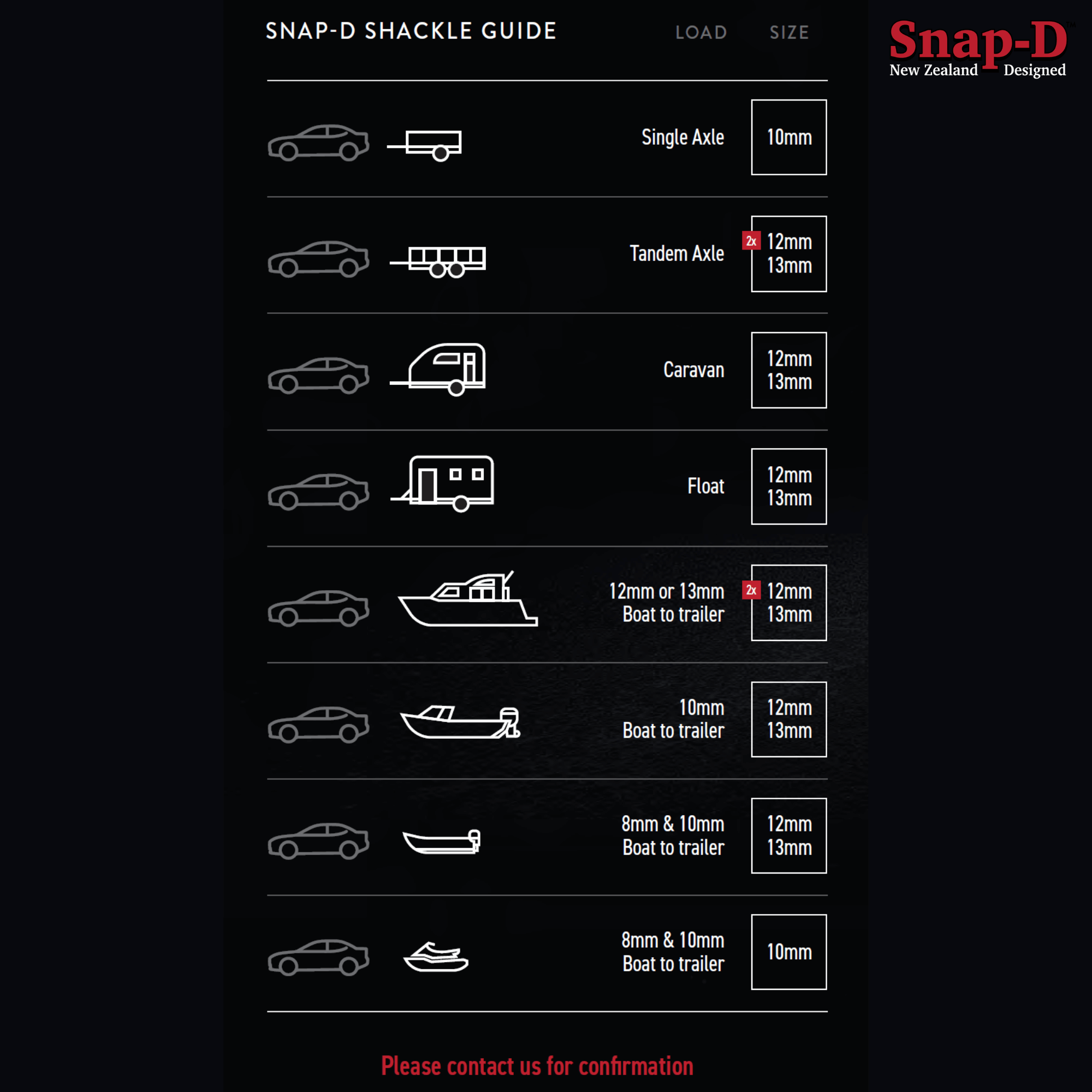

Use our Shackle Guide or contact the Snap-D Australia team for assistance selecting the right shackle for your application.
