Trailer Safety Chain Laws Australia: Do You Really Need Two Chains?
If you’ve ever spent five minutes at an Australian boat ramp or a busy caravan park, you’ve probably heard the "experts" debating trailer setup. One bloke reckons you only need one chain if you’re under three tonnes; another insists two chains are mandatory for everything bigger than a box trailer.
The reality is that trailer safety chain laws in Australia aren't a matter of opinion, they are strictly regulated safety requirements. Get it wrong, and you’re looking at more than just a hefty fine; you’re risking a catastrophic "runaway trailer" scenario and potentially voiding your insurance.
At Snap-D Australia, we live and breathe towing compliance. So, let’s clear up the confusion once and for all. Do you really need two chains? What are the AS 2741 shackle requirements? And how do you make sure your setup is 100% legal before you hit the highway?
The Golden Rule: The 2.5T Threshold
In Australia, the number of safety chains you need is determined by your trailer’s Aggregate Trailer Mass (ATM). ATM is the total weight of the trailer plus its full load (water, fuel, gear, and the trailer itself) when it is not hitched to a vehicle.
Here is how the law breaks down:
- Trailers up to 2,500kg (2.5 Tonnes) ATM: You are legally required to have at least one safety chain.
- Trailers over 2,500kg and up to 3,500kg ATM: You are legally required to have two safety chains.
- Trailers over 3,500kg ATM: These must have two safety chains of a specific structural grade (usually 800 MPa breaking stress) or a breakaway system, depending on the specific state regulations and ADRs (Australian Design Rules).
For most Aussie caravanners and boaties, that 2.5T mark is the magic number. If your rig is a tandem axle or a large single axle with a heavy load, chances are you’re over 2.5T and legally need those two chains.
Why Two Chains? The "Cradle" Effect

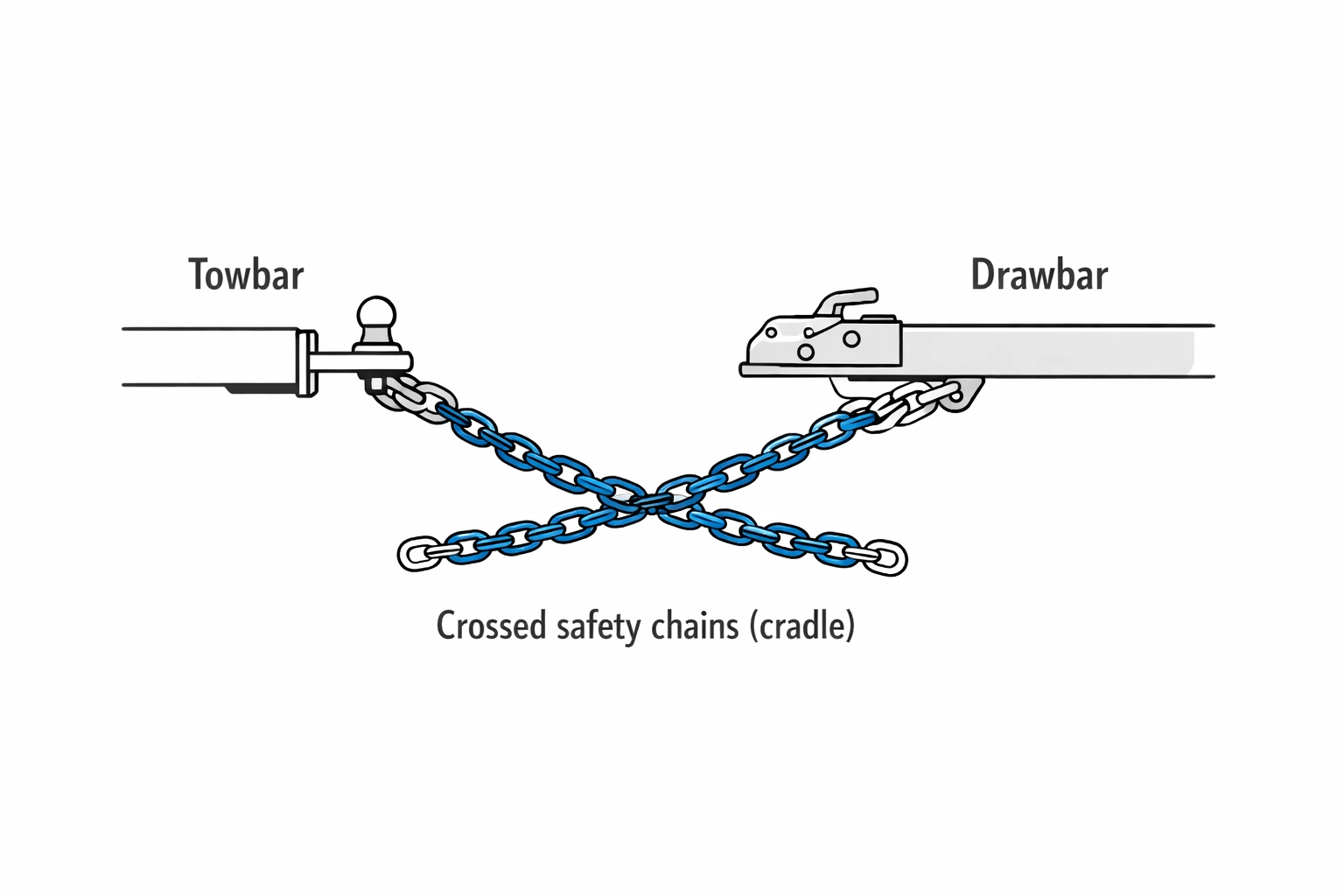

It isn't just about doubling the strength. When you use two safety chains, the law requires you to cross them under the drawbar.
Why? Because if your hitch or tow ball fails, the crossed chains act as a "cradle." They catch the drawbar before it hits the tarmac, preventing it from digging into the road and flipping the trailer or causing it to spear into oncoming traffic. If you only have one chain on a heavy trailer, the drawbar is much more likely to drop straight down, leading to a much nastier outcome.
The Weak Link: Your Shackles
You can have the strongest safety chains in the world, but if you’re using a cheap, unrated shackle from a bargain bin, your setup is illegal and unsafe. This is where many people get caught out during roadside inspections.
To be a legal shackle in Australia, it must meet specific criteria. Under AS 2741 shackle requirements, a rated shackle should be permanently marked by the manufacturer so it’s clearly identifiable and correctly rated for the job.
As a practical guide, you want to see:
- The Manufacturer’s Mark (So we know who made it).
- A clear rating/limit marking that matches the intended use.
A quick note on “Grade S” / “6” markings
You’ll often hear people say a towing shackle “must be stamped S or 6”. Those marks are commonly seen on galvanised/alloy steel lifting-style shackles (and they’re useful for identifying grade in that world).
But Snap-D shackles are 304 stainless steel and we rate them in a way that makes sense for towing: ATM (or MTM in NZ).
WLL vs ATM/MTM (why towers get confused)
- WLL (Working Load Limit) is a lifting term (cranes, rigging, overhead loads).
- For towing, what most people actually need to match is the trailer’s weight rating — that’s where ATM (Aggregate Trailer Mass) and sometimes MTM (Max Towing Mass) markings are far more relevant, because they line up with how trailers are legally specified.

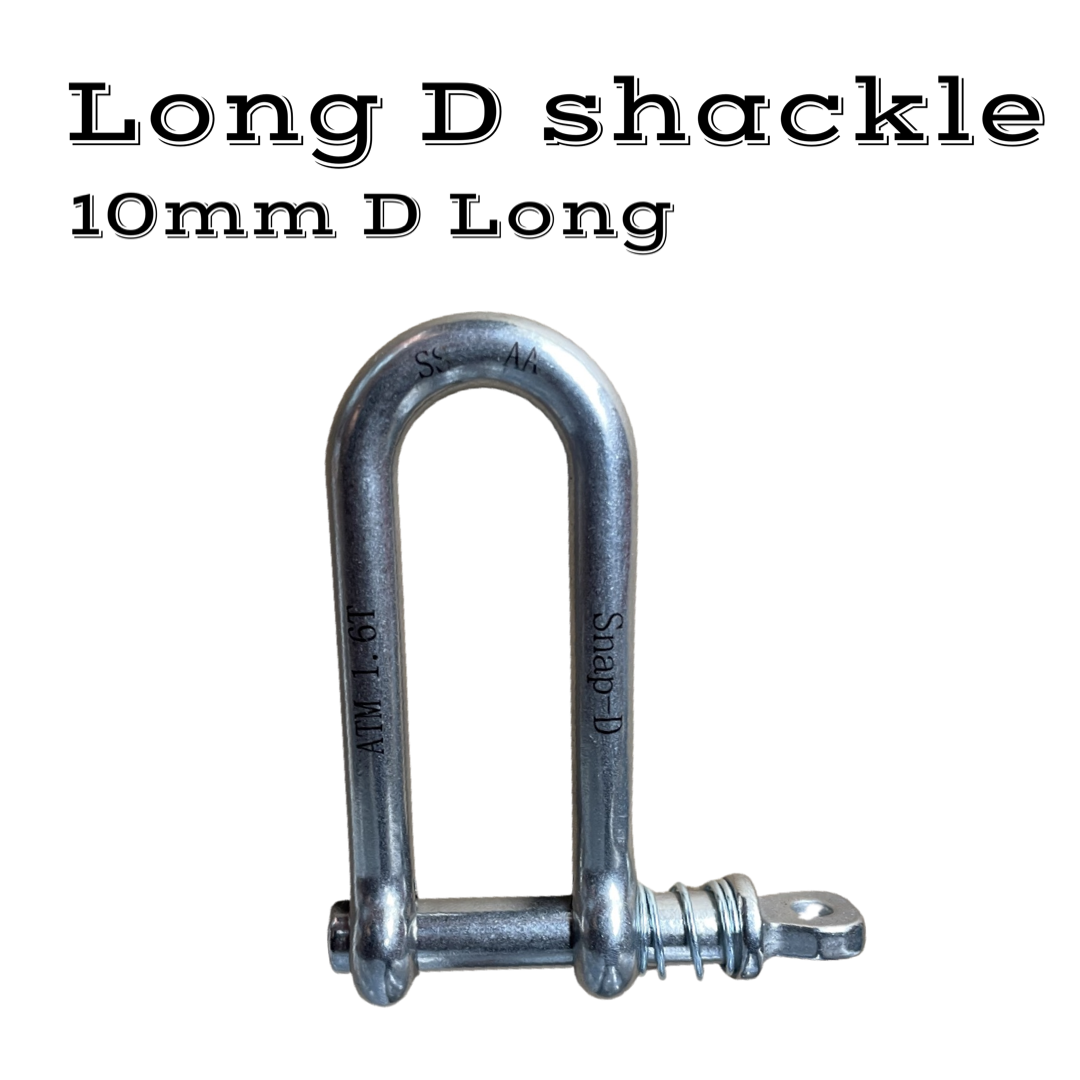

At Snap-D, our stainless steel shackles are ATM-rated for towing and clearly marked, so you can pair the shackle rating to your trailer ATM and know you’re running transport-compliant gear on Australian roads.
The 1.5x Rating Rule: Doing the Maths
This is a technical point that often trips people up. In Australia, the breaking load of your shackle must be at least 1.5 times the ATM of the trailer.
Wait, breaking load isn't the same as WLL? Correct.
WLL is a lifting concept and many lifting shackles use a safety factor (often 6:1) between WLL and minimum breaking load.
For towing-focused gear like Snap-D, you’ll typically be working off ATM/MTM ratings (because they match how trailers are specified in Australia), while the product is still engineered and tested to meet the required safety margins behind the scenes.
If you are towing a 3,500kg caravan:
- Required Breaking Load: 3,500kg x 1.5 = 5,250kg.
- A high-quality Grade S shackle with a WLL of 1t (1,000kg) usually has a breaking load of 6,000kg, making it legally compliant for that 3.5T trailer.
However, you can’t just guess. You need to ensure the shackle is clearly marked. Our Snap-D 13mm Bow Shackle, for example, is rated for 2.5T ATM individually, providing massive peace of mind and total compliance for heavy-duty setups.
Common Compliance Mistakes to Avoid
- Using "Hardware Store" Shackles: If it doesn’t have a proper manufacturer mark and a clear towing-relevant rating (for example ATM/MTM, or a properly specified rated limit), it’s not for towing. These are meant for hanging plant pots, not holding 3 tonnes of caravan.
- Shackles on the Trailer End: By law, the safety chain must be permanently attached to the trailer (usually welded or fixed with a bolt that can't be easily removed). You use the shackle to connect the chain to the vehicle's tow bar.
- Dragging Chains: If your chains are too long, they’ll drag, wear down, and eventually snap under tension. If they’re too short, they’ll bind when you turn a corner. You want just enough slack to allow full turning circles without the chain touching the ground.
- Mixing Ratings: Your setup is only as strong as its weakest link. If you have 3.5T rated chains but use a 1.5T rated shackle, you are not compliant for a 3.5T load.

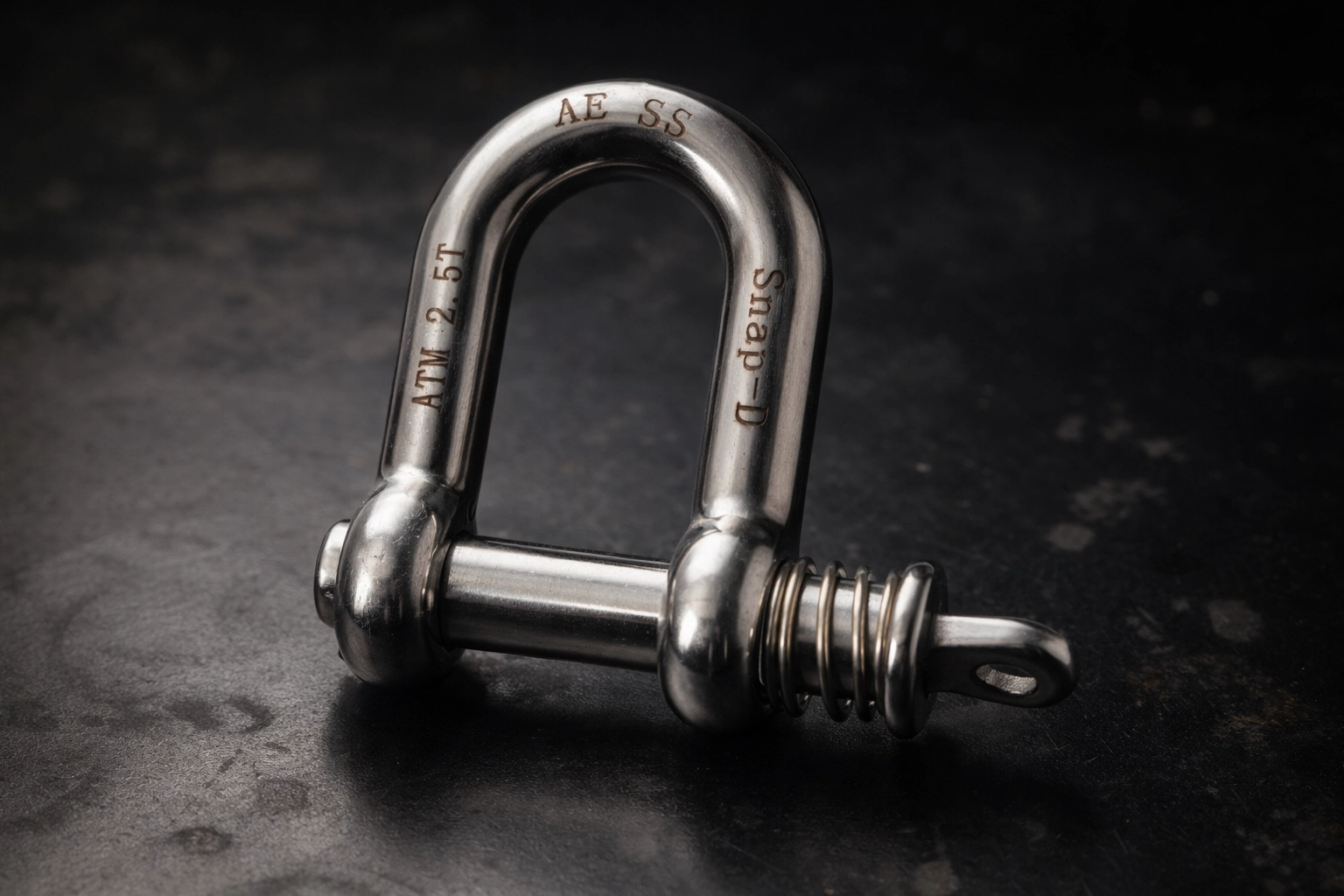

Choosing Between D-Shackles and Bow Shackles
Which one do you need?
- D-Shackles: These are narrow and look like a capital 'D'. They are great for direct, straight-line pulls.
- Bow Shackles: These have a more rounded "O" shape. The benefit here is that they allow for more movement and can handle loads from different angles more effectively, perfect for when you're turning tight corners with a large trailer.
For most modern tow bars with thicker attachment points, the Snap-D 13mm Bow Shackle is the go-to choice because it offers that extra bit of "wiggle room" while maintaining a high rating.
Why Snap-D is the Practical Choice
Let’s be honest: standard rated shackles are a pain. You’re constantly worried about the pin vibrating loose and falling off on the highway, or you’re fumbling with a wrench because the pin is seized.
We solved that. Our shackles feature a patented half-turn quick-connect pin with a captive design.
- It’s Fast: No more spinning the pin for thirty seconds. Half a turn and you’re locked.
- It’s Secure: The captive pin stays attached to the shackle, so you can't drop it in the mud or lose it on the road.
- It’s Legal: Our shackles are fully AS 2741 compliant, made from high-quality 304 stainless steel, and clearly marked with all the legal requirements for Aussie roads.
Whether you're looking for multi-packs for a dual-chain setup or just need a single replacement, we’ve got you covered.
Summary Checklist for Australian Towers
Before you head off on your next trip, run through this quick checklist:
- Weight Check: Is your trailer ATM over 2,500kg? If yes, ensure you have two safety chains and compliant shackles (Snap-D preferably).
- Marking Check: Do your shackles have Grade S and a WLL stamped on them?
- 1.5x Check: Is the breaking load of your shackles at least 1.5x your trailer's ATM?
- Attachment Check: Are the chains permanently fixed to the trailer and crossed under the drawbar?
- Condition Check: Are there any worn links or rusted pins?
Towing safely isn't just about having a big enough engine; it’s about ensuring that if the worst happens, your equipment does its job. Don't risk it with sub-par gear.
Check out our full range of compliant towing shackles or head over to our shackle guide to find the perfect fit for your rig.
Stay safe on the roads, Gov!
