How to Choose the Best Rated Shackle for Your Caravan (3.5T vs 2T Compared)
When you’re prepping for a lap around Australia or even just a weekend run to the coast, the checklist is usually a mile long. You’ve checked the tyre pressures, the water tanks are full, and the weight distribution hitch is dialled in. But there is one small, often overlooked component that stands between a safe journey and a potential disaster: the safety chain shackle.
Choosing the right rated shackle for your caravan isn't just about finding something that fits through the chain link. In Australia, it is a matter of strict legal compliance and, more importantly, engineering safety. If your 3.5-tonne caravan decides to part ways with your tow ball, those shackles are the only thing keeping your investment, and other road users, safe.
In this guide, we’ll break down exactly what size shackle for a caravan you actually need, comparing the requirements for the popular 2T and 3.5T weight classes, and explaining the jargon like ATM vs MTM.
Use ATM (Not MTM): The Australian Towing Mass That Matters
Before you can pick a shackle, you need to be clear on the one number Australian compliance is built around: ATM.
- ATM (Aggregate Trailer Mass): This is the total mass of the trailer when it’s not hitched to the tow vehicle. It includes the caravan plus everything you’ve loaded into it (water, gas, gear, and that heavy cast-iron skillet). In Australia, ATM is the reference figure used for safety chain and shackle compliance.
- MTM: You’ll sometimes hear “MTM” thrown around (it’s commonly used in New Zealand contexts). In an Australian compliance conversation, it’s best to avoid MTM and stick with ATM, because ATM is the term used on Australian compliance plates and is what roadside checks and standards reference.
For choosing shackles in Australia, always work from the trailer’s ATM. Your shackles (and chains) need to be rated to handle the ATM-based requirements and the forces involved if the primary coupling fails.
The Legal Requirements for Caravan Shackles in Australia
In Australia, the two key references you’ll see come up over and over are:
- AS 2741-2002 (Shackles)
- VSB 1 (Vehicle Standards Bulletin 1) (Trailer requirements, including safety chains and connections)
Between them, they’re the backbone of what gets checked (and enforced) when it comes to towing gear and trailer safety chain connections.
Roadside Compliance Markings (What Inspectors Look For)
If you want a shackle to be considered legal for towing use in Australia, it needs to be permanently marked on the shackle body with:
- Manufacturer ID (e.g. Snap-D)
- Quality Grade: S
- Working Load Limit (WLL)
If it’s not stamped/marked, it’s not something you want on your safety chains — even if it “looks strong”.
The Strength Rule of Thumb (ATM-Based)
A common engineering rule of thumb used by transport authorities is that the shackle must have a breaking strain of at least 1.5 times the trailer ATM.
The Formula for Safety
To find the required Working Load Limit (WLL) marked on a shackle, engineers often use this calculation:
** (ATM x 1.5) ÷ 6 = Required WLL **
Why divide by six? Because a high-quality, rated Grade S shackle typically has a 6:1 safety factor. So a shackle marked with a WLL of 1000kg won’t actually fail until roughly 6000kg of force.
For a deeper dive into the legalities, check out our previous article: Aussie Towing Laws: Is Your Trailer Safety Chain Shackle Actually Legal?
2-Tonne Caravan: What Size Shackle?
A 2T (2000kg) caravan is a common weight for mid-sized single-axle caravans or large camper trailers. While it might feel "light" compared to the big rigs, it still carries immense kinetic energy at 100km/h.
- Required WLL: To meet the 1.5x ATM rule, you need a breaking strain of 3000kg.
- The Best Fit: An 8mm or 10mm "Grade S" shackle is usually the standard here.

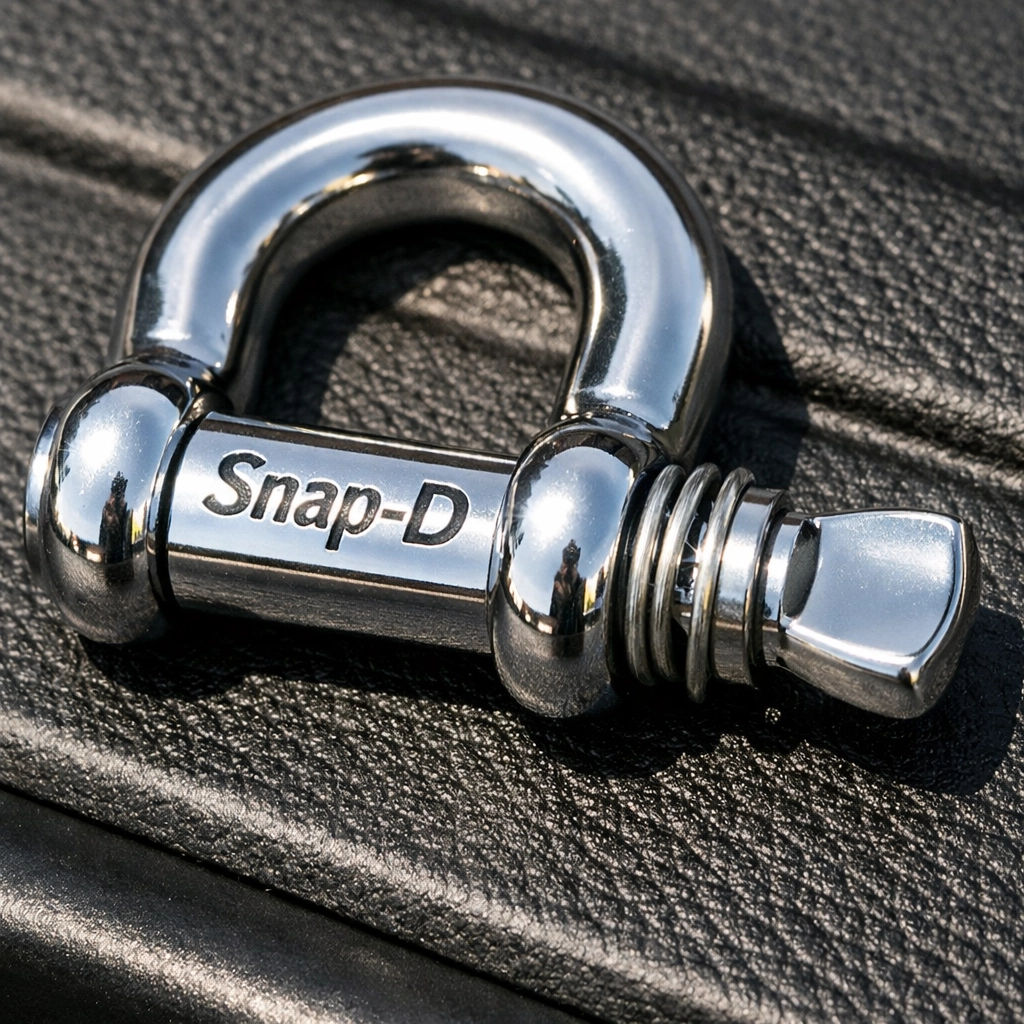

- Snap-D Recommendation: Our 10mm D-Shackle (1600kg WLL) offers a massive safety margin for a 2T caravan. It provides the strength required while maintaining a profile that fits most standard tow bar holes.
3.5-Tonne Caravan: The Heavyweights
The 3.5T (3500kg) caravan is the standard for modern tandem-axle off-roaders. Because you are at the upper limit of what most consumer tow vehicles (like the Hilux, Ranger, or LC300) can pull, your hardware needs to be top-tier.
-
Required breaking load (minimum): For a 3.5T caravan, you’re working to a minimum breaking load of 5250kg (that’s 1.5 × ATM).
-
Dual chain rule (non-negotiable): For any trailer or caravan over 2.5T ATM, two safety chains and TWO shackles are required — one shackle per chain. This is not a “nice to have”; it’s the compliant setup referenced under VSB 1.
-
What that means for shackle choice: You’re not trying to make one shackle “do it all”. You’re setting up a compliant dual-chain system where each chain has its own rated shackle.
-

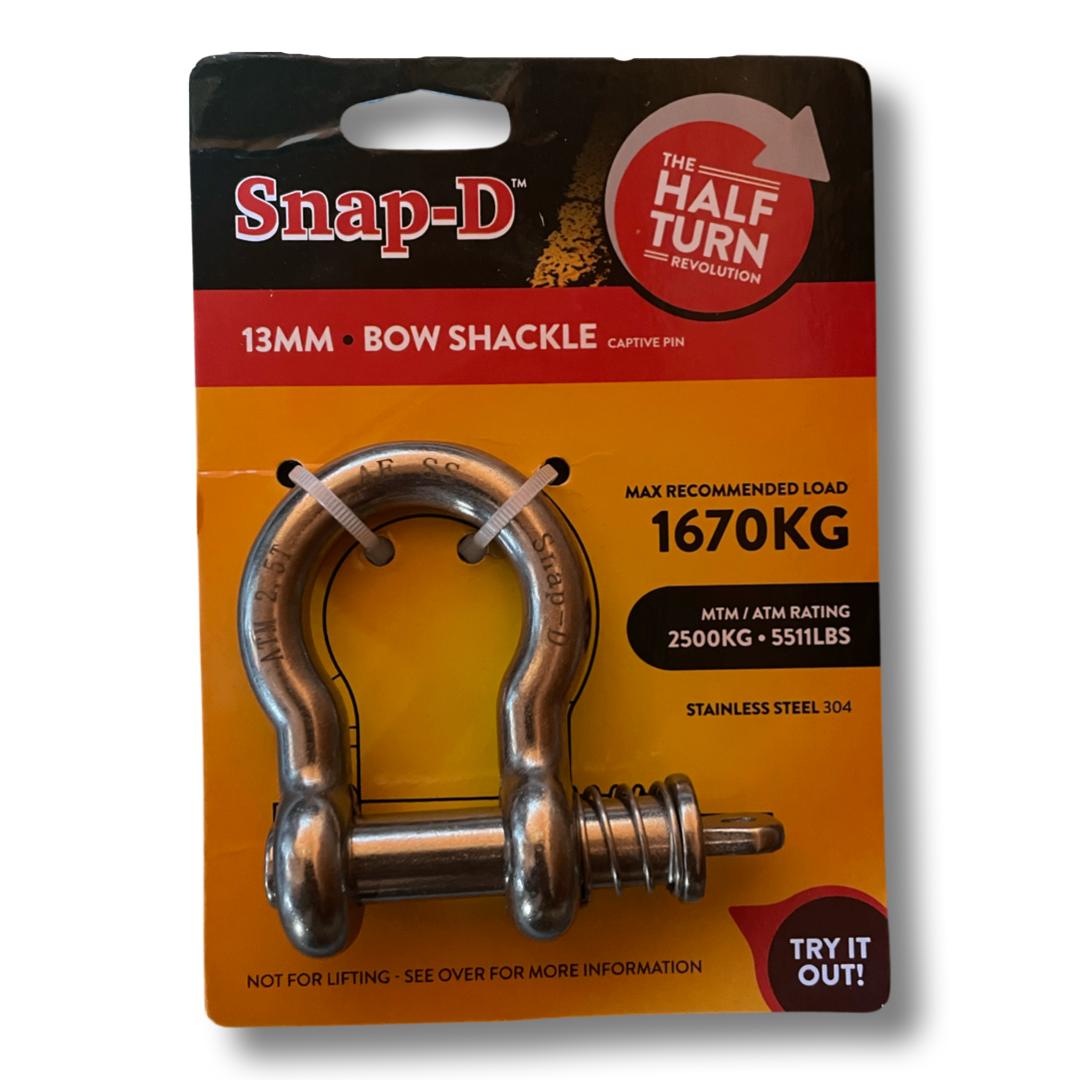

Compliant Snap-D setup for 3.5T: Use a pair of Snap-D shackles — either:
Both options are a compliant choice for a 3.5T setup because their breaking load exceeds the 5,250kg (1.5 × ATM) requirement. Practically speaking, most caravanners prefer the bow shape for a bit more chain clearance and movement on tandem-axle vans during tight turns.
-
When to step up to 17mm/19mm: If you’re dealing with heavier rigs (for example over 4.5T) or specific fitment needs, the 17mm D / 19mm Bow options are the go-to.
Comparison Table: 3.5T vs 2T Shackles
| Feature | 2T Caravan (2000kg ATM) | 3.5T Caravan (3500kg ATM) |
|---|---|---|
| Minimum Breaking Strain | 3000kg | 5250kg |
| Recommended WLL Mark | 1000kg - 1600kg | 1600kg - 2500kg+ |
| Safety chain requirement | Typically single chain | Dual chains (over 2.5T ATM) |
| How many shackles? | Usually 1 | 2 (one per chain) |
| Common Pin Size | 10mm | 13mm |
| Best Shackle Type | D-Shackle or Bow | Bow Shackle (for chain clearance) |
| Snap-D Product Match | 10mm D-Shackle | Pair of 13mm Bow Shackles |
Why Material and Design Matter
It isn't just about the size of the pin; it's about what the shackle is made of and how it functions.
Stainless Steel vs. Galvanised Steel

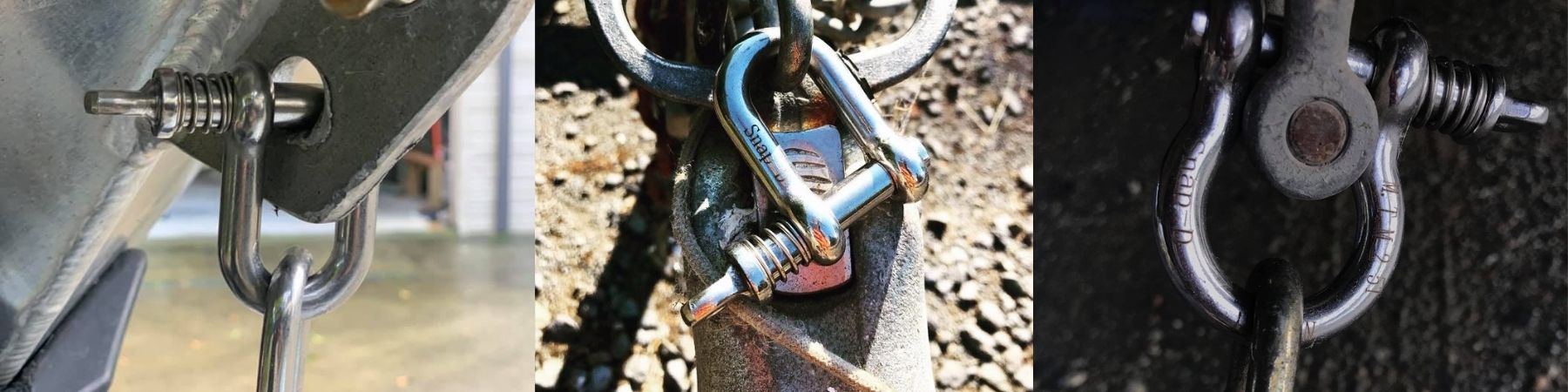

Most traditional rated shackles are galvanised steel. While strong, they are prone to rusting over time, especially if you live near the coast or do beach crossings. Snap-D specialises in 304 Stainless Steel shackles. These provide the same (or better) load ratings while being naturally resistant to corrosion, ensuring the pin never seizes when you need to unhitch.
The Problem with Traditional Pins
If you’ve spent years towing, you know the frustration of a shackle pin vibrating loose or, worse, losing the pin in the long grass at a campsite.
Our patented half-turn design uses a captive pin system. You don’t have to unscrew the pin entirely; a simple half-turn releases it, but the pin stays attached to the shackle body. This is a game-changer for caravaners who value efficiency and want to avoid the "lost pin" headache.
Common Mistakes to Avoid
- Using Unrated "Hardware Store" Shackles: If it doesn't have a WLL or Grade S marking stamped into the body, it is not legal for towing. These are usually made of inferior "pot metal" and can snap under sudden load.
- Incorrect Sizing for the Hole: Many people buy a massive 16mm shackle only to find the pin doesn't fit through the hole on their Hayman Reese tow bar. Always measure your tow bar hole before buying.
- Ignoring the Safety Chain: Your shackle is only as strong as your chain. Ensure your safety chains are also rated for the ATM of your caravan.
Final Thoughts: Safety First, Always
Choosing the right shackle for your caravan comes down to one simple question: "Is this piece of hardware capable of saving my rig in a worst-case scenario?"
For a 2T caravan, a high-quality 10mm rated shackle is your go-to. For a 3.5T caravan, remember the big compliance gotcha: once you’re over 2.5T ATM, you’re legally into a dual safety chain setup — meaning two safety chains and TWO shackles (one per chain).
For a compliant 3.5T setup, the practical answer is simple: run a pair of 12mm D shackles or a pair of 13mm Bow shackles, because their breaking load exceeds 5,250kg (1.5 × 3,500kg ATM). Also make sure your shackles are permanently marked for roadside compliance with Snap-D (manufacturer ID), Grade S, and WLL. If you’re dealing with heavier rigs over 4.5T, step up to the 17mm D / 19mm Bow options.
At Snap-D, we don't just sell shackles; we provide peace of mind. Our shackles are designed specifically for the Australian towing environment, strong, compliant, and incredibly easy to use.

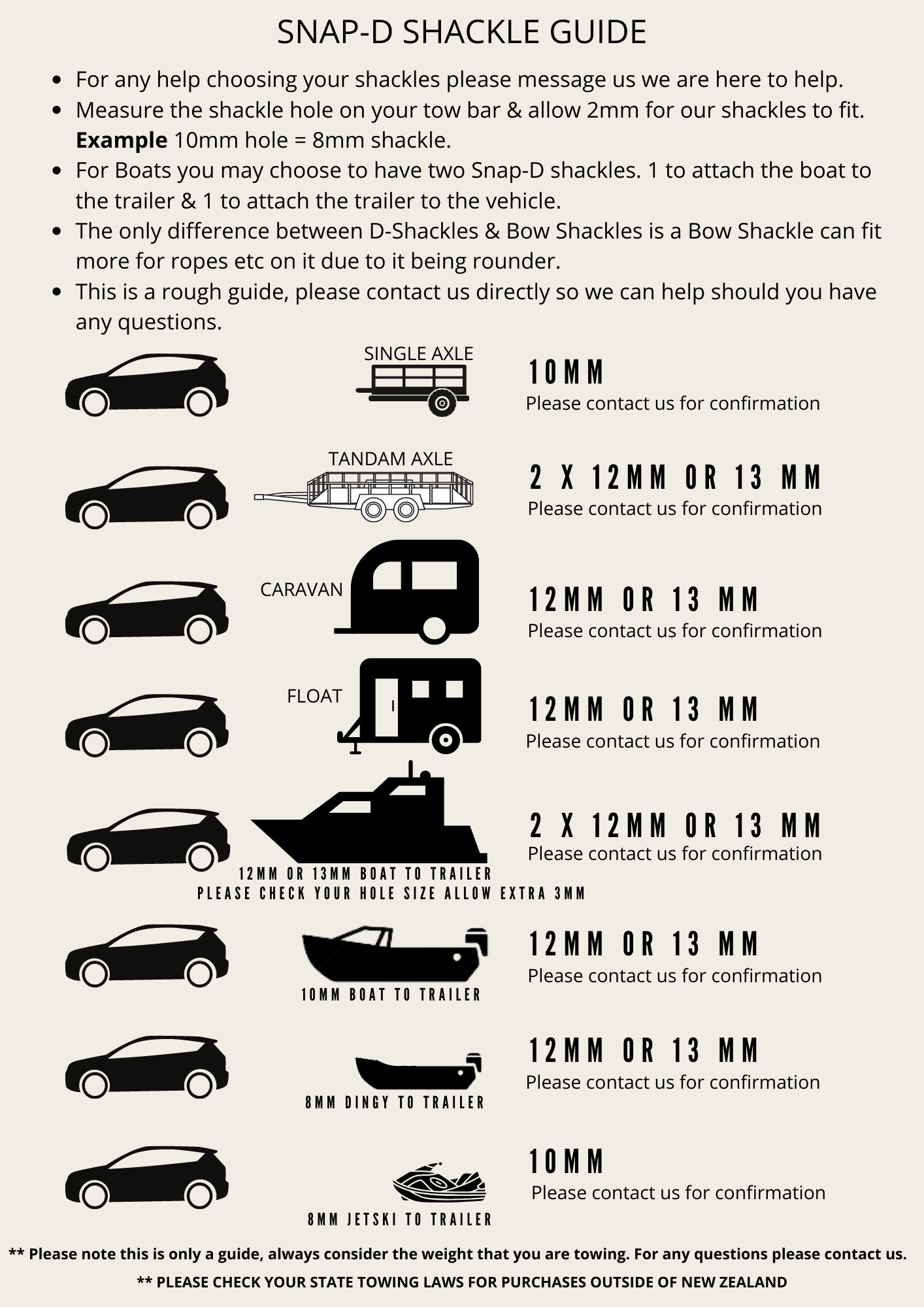

Still not sure what size you need? View our full sizing guide here or contact the team at Snap-D Australia for expert advice on your specific setup.
